Authoring – AI Assistant¶
The in-editor AI Assistant helps you build, modify, and test decision models in natural language — it can edit the diagram, generate test inputs, and answer questions about the model.
Required to use the assistant
All how-tos on this page require:
- Access: Authoring
- Deployment: the AI Assistant must be enabled by your administrator
- Credential: a valid AI token configured in Settings → AI Assistant
History is per workspace
The assistant's chat history and pending queue are stored per workspace — switching to a different model shows that model's own conversation, not a single global one.
How to open the AI Assistant panel¶
Open the in-editor assistant to get help building or analyzing a model.
Steps:
- With a model open, click the floating Aletyx AI trigger button (bottom-right of the editor).
Verify: The assistant panel opens with a message box; if no token is set, a "no token" prompt appears instead.
How to ask the AI Assistant to create or modify a model¶
Describe a change in natural language and let the assistant draft DMN edits.
Prerequisites: AI Assistant panel open and a valid AI token (Settings → AI Assistant).
Steps:
- Type your request (for example, "Add a decision node called Eligibility") in Describe the changes you want to make….
- Press Enter or click Send.
- Wait for the response (the editor locks while the model is being changed).
Verify: The assistant replies; for model changes, a diff is offered for review.
Be specific
Mention the node names, data types, and conditions you want. "Add an Eligibility decision using Applicant Age and Credit Score" gets a much better result than "add eligibility logic".
How to attach a file to the AI Assistant¶
Give the assistant supporting documents (PDF, CSV, images, spreadsheets, etc.).
Prerequisites: AI Assistant open; file attachments enabled by your administrator; file ≤ 2 MB.
Steps:
- Click the paperclip (attach) button, or drag a file onto the open panel.
- Confirm the file badge appears, then send your message.
Verify: The file badge shows under the input and the assistant's reply reflects the attachment.
How to review and apply AI-suggested model changes¶
Approve or discard the model edits the assistant proposes.
Prerequisites: An assistant reply that includes model changes (diff opened).
Steps:
- Inspect the diff overlay in the editor.
- Accept or revert the proposed changes.
Verify: Accepted changes appear on the canvas; reverting leaves the model unchanged.
How to load AI-generated test inputs into the DMN Runner¶
Move sample inputs the assistant produced straight into the runner.
Prerequisites: An assistant message containing JSON test inputs; DMN Runner available.
Steps:
- On that message, click the Test button (play icon).
Verify: A "Test inputs loaded into DMN Runner." toast appears and the runner is populated.
How to manage AI Assistant requests (queue, cancel, resend)¶
Control in-flight and failed assistant requests.
| You want to… | Do this | Result |
|---|---|---|
| Send a follow-up while a reply is still streaming | Type and send another message — it's marked Queue ("Next in queue") | Messages run in order, one after the other |
| Remove a queued message before it runs | In the Next in queue preview, click the ✕ on the queued item | The message is dropped from the queue and not sent |
| Abort the current request | Click Cancel next to "Thinking…" | The current request stops; nothing is committed to the model |
| Retry a failed message | Click the resend (↻) icon on the failed user message | The same prompt is sent again as a new request |
How to clear the AI Assistant chat history¶
Wipe the assistant conversation for the current workspace.
Prerequisites: AI Assistant open with at least one message.
Steps:
- Click the trash icon in the assistant panel header.
- Confirm Clear History in the dialog.
Verify: The conversation empties.

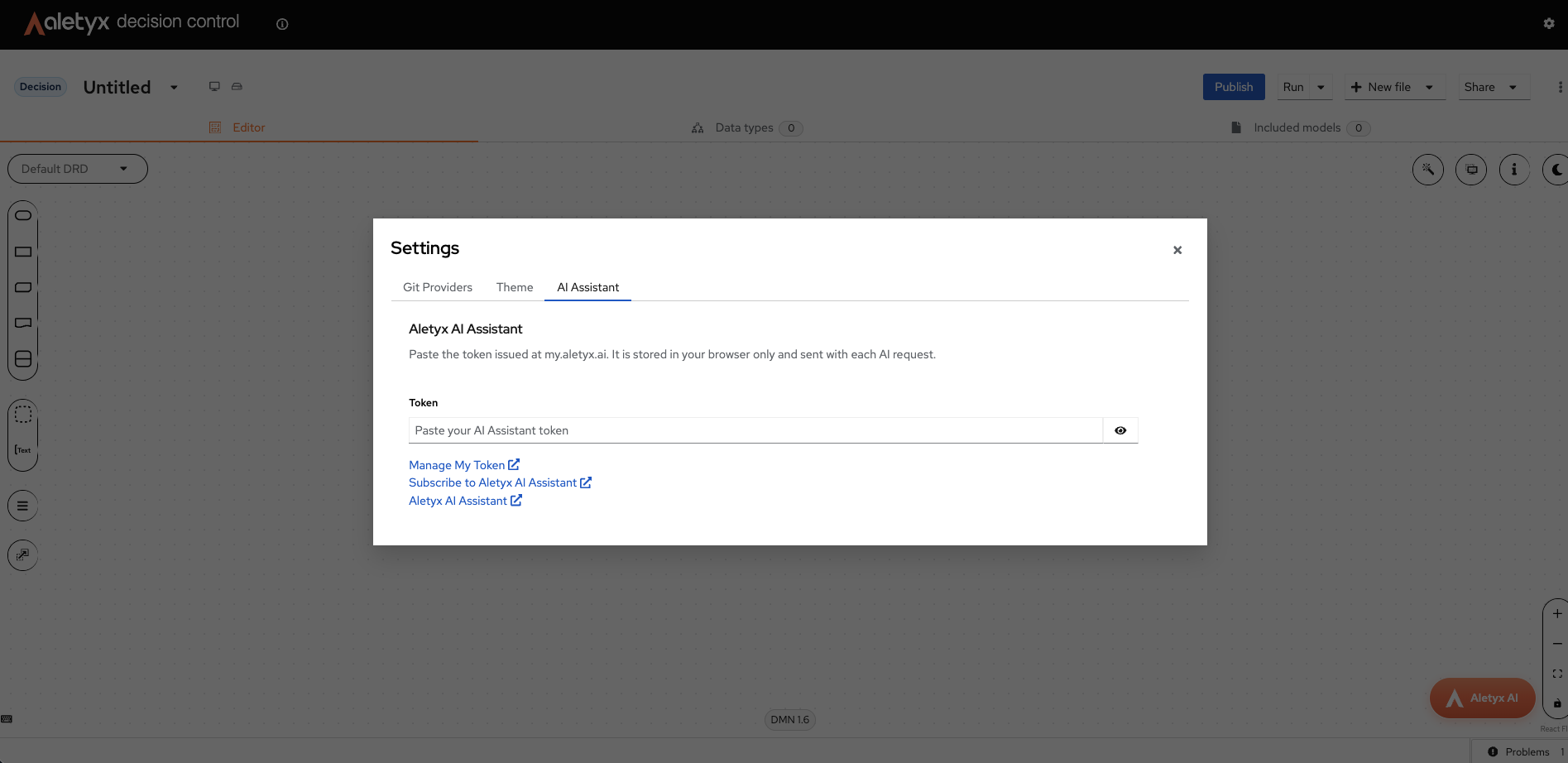

How to configure the AI Assistant token¶
Store the credential the in-editor assistant needs.
Prerequisites: AI SaaS integration enabled.
Steps:
-
Open Settings (masthead cog) → AI Assistant (or click Open Settings in the no-token prompt).
-
Paste your token and validate it.
Verify: The token validates successfully and the assistant becomes usable.
